Description
Project Name: Soundproof Folding Movable Wall
Operation Method: Manual
Manufacturer and Supplier: DAITACHI partition wall
Application: Office Area Divider
Partition Panel Thickness: 100mm
Material: MDF
Color: White
Style: Minimalist
Features: Soundproofing, Fireproofing, Thermal Insulation, E1 Environmental Protection
Advantage: No Floor Tracks
Partition Sound Insulation Certification: STC 44dB - STC 53dB
Fire Rating: Up to 1.25 hours.

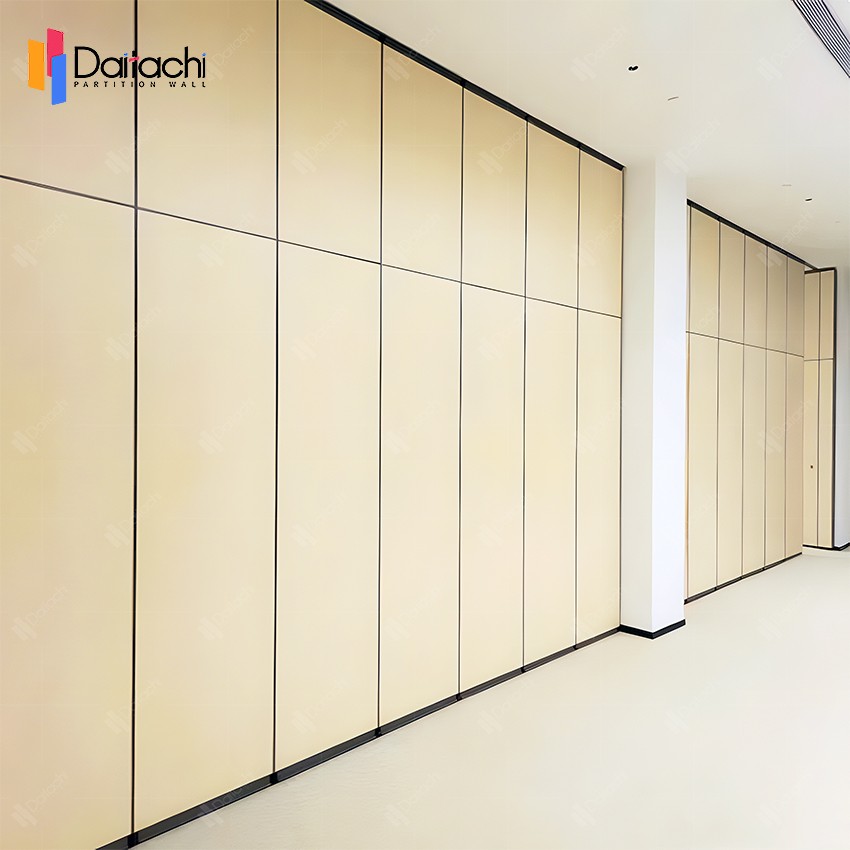

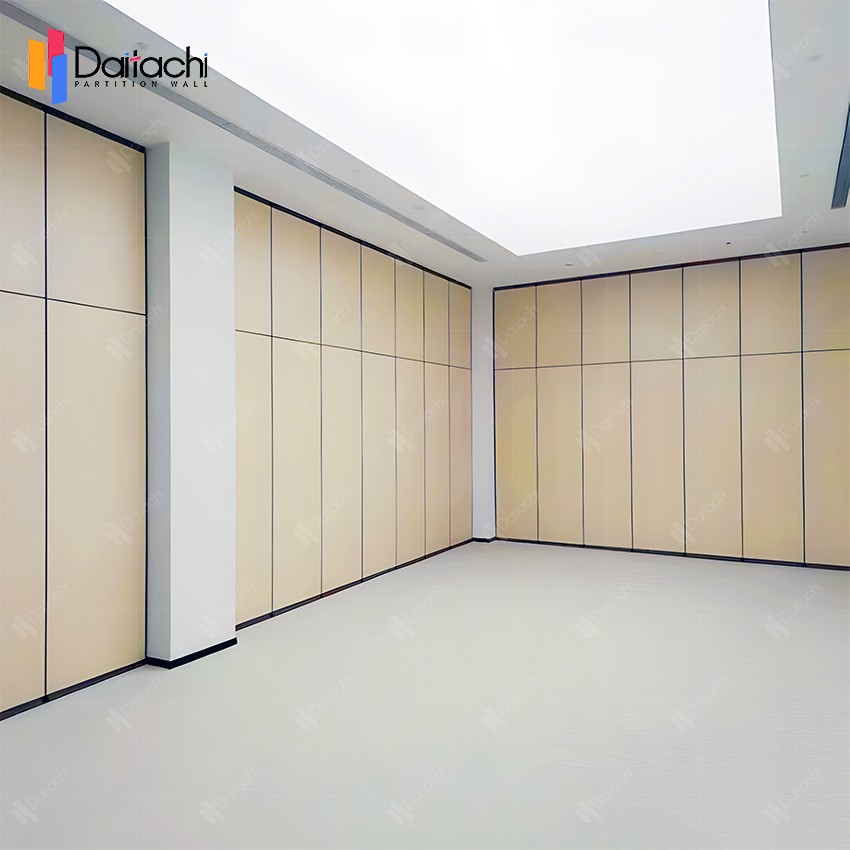

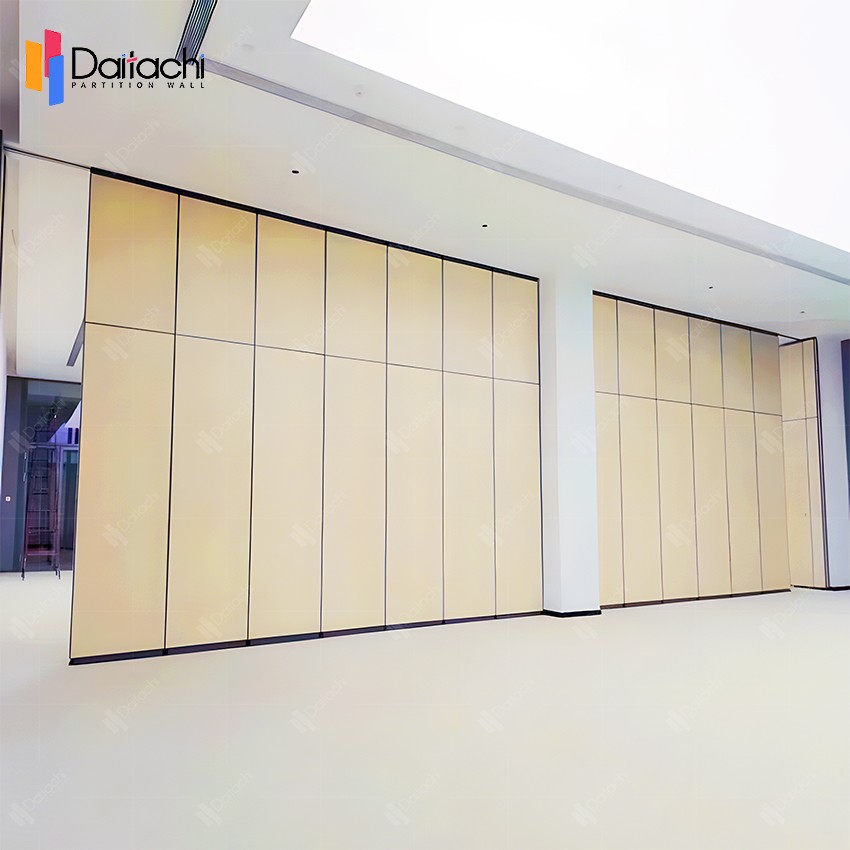

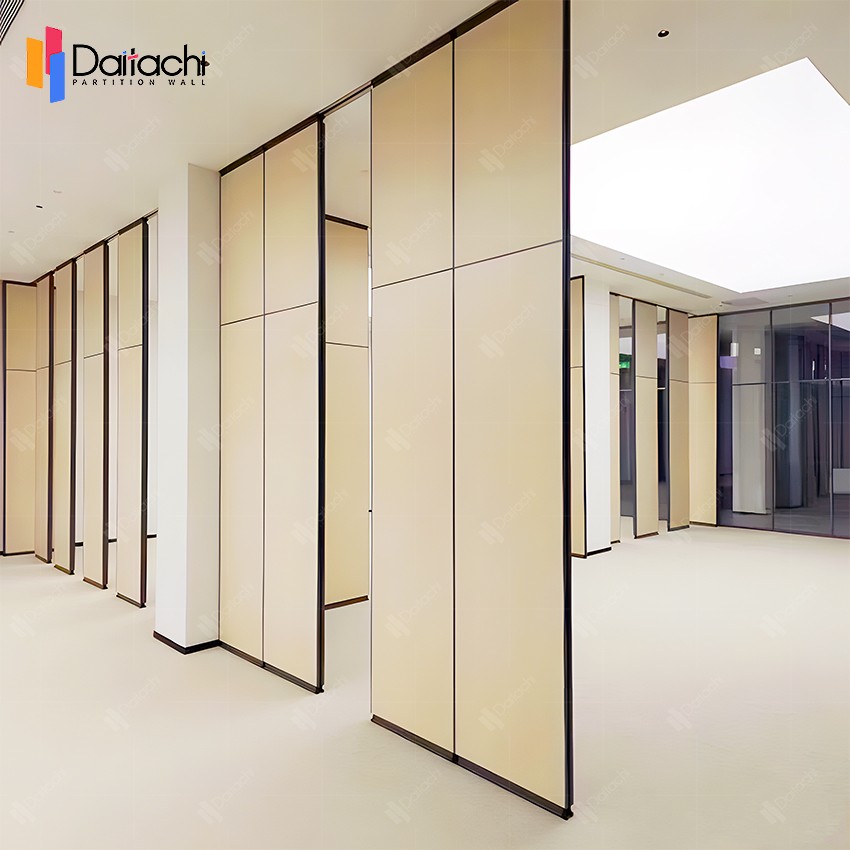

This minimalist off-white manually moveable partition wall features MDF panels as the exterior finish. Internally, the panels are coated with multiple layers of sound insulation, which not only blocks sound transmission but also absorbs some of it, achieving a sound insulation rating of 44dB - 53dB, certified by independent acoustic experts.
Our movable wall system consists of independent panels that move independently but connect to form a continuous wall. Using a top-hung system, the panels are fully supported without the need for floor tracks. Retractable top and bottom sealing strips ensure smooth and easy panel movement while maintaining stability when deployed.
The concealed aluminum alloy frame structure allows the panels to seamlessly fit when unfolded, creating an elegant wall design that complements any decor. In this project, we used an off-white background to visually enhance the overall view and maximize the natural light that fills the space.
When not in use, the panels fold completely into the side cabinets. Folded to a thickness of approximately 350mm, they take up no extra floor space and maximize space flexibility. Manual operation is also very simple, allowing even non-professionals to easily assemble them while avoiding the issue of power outages that could disable the motor.
Daitachi's off-white wall system combines efficiency, flexibility, and soundproofing, effectively solving today's office space utilization challenges. If you have any questions, please leave a message and we will provide you with the best service.
