Flexible Division, Quiet Space

Flexible Division, Quiet Space

Core features of the product

Adopt high-density fiberboard/wood frame, the surface is covered with environmentally friendly wear-resistant coating, and the light beige color is suitable for multiple decoration styles. Through the ceiling-free aluminum-magnesium alloy track system, flexible combination and folding storage of single to multiple doors are realized, and the top is equipped with imported POM pulley components to ensure smooth and noiseless pushing.

Detailed explanation of technical parameters

Model classification:

BD-65 type (light): thickness 65mm, single door light weight, suitable for small conference rooms and training rooms for rapid deployment.

BD-100 type (high sound insulation): thickness 100mm, built-in PAR sound-absorbing glass fiber and rubber sealing strip, to achieve STC54dB sound insulation effect, suitable for theaters, recording studios and other scenes with extremely high sound insulation requirements.

Ultra-high type (heavy): thickness 120mm, double-layer aluminum alloy frame and heavy-duty rails, load-bearing up to 500kg/door, suitable for 10-15 meters high space, such as convention and exhibition centers, hotel banquet halls.

Track system:

6063-T6 aluminum alloy track, supports 360-degree rotation and single-double track switching, and can slide more than 20,000 times.

The mechanical rocker locking device can realize the up and down extension of the partition by clockwise/counterclockwise rotation to ensure stability.

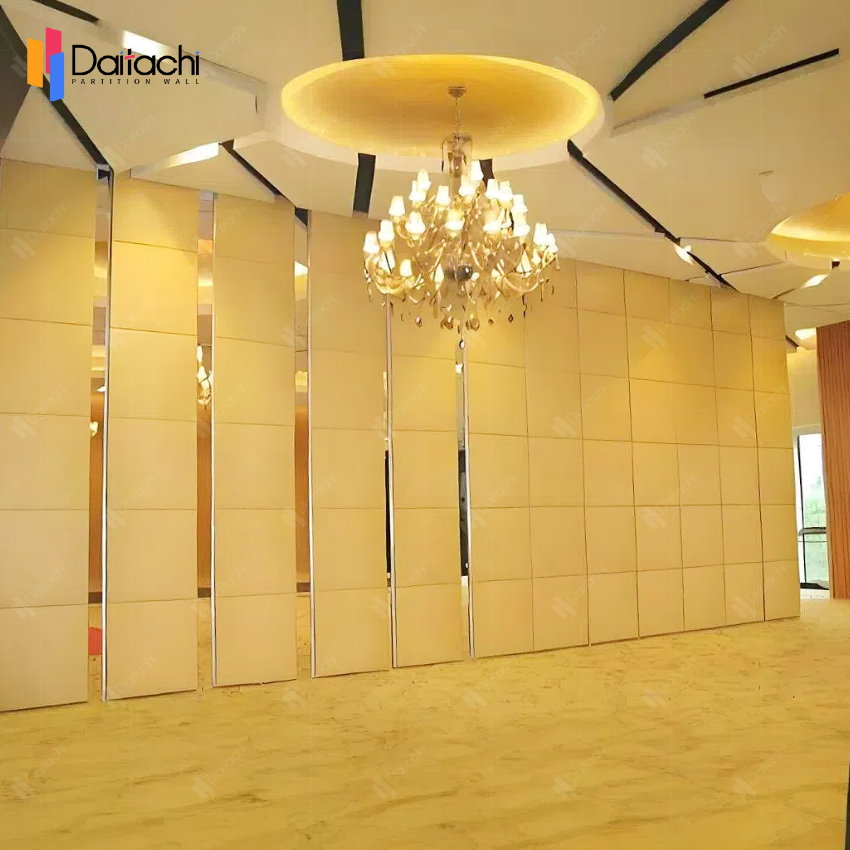

Manual <a href=https://www.daitachipartitionwall.com/Movable-Partition-Wall.html target='_blank'>Movable Partition Wall</a> with golden panels in the hotel lobby

Environmental protection and safety certification

LEED Platinum certification: The product has passed the strict standards of the International Green Building Council, 80% of the materials are recyclable, and the construction pollution is reduced by 40%, helping the construction project to obtain advanced green certification.

Fireproof performance: Class A non-combustible materials are used, which meet EU standards to ensure the safety of personnel and property.

Formaldehyde emission: From the track frame to the panel material, the highest quality environmentally friendly materials are used, and the formaldehyde emission content is far lower than the requirement, achieving the standard of "installation and use".

Design, installation and maintenance

Exclusive customization: Exclusive solutions are customized according to the different conditions of each site. There are professional design teams to communicate with you in terms of panel materials, decoration styles, wall system size, etc., and customize according to the actual situation and your needs.

Standardized process: The entire process of line positioning, drilling reinforcement, and track debugging is completed by a professional team, and the space can be delivered within 1-3 days depending on the installation area.

Warranty commitment: The track system provides a 20-year warranty, the pulley assembly is guaranteed for 3 years, and 23 service centers around the world support 48-hour rapid response.
