Description
The standard manually operated partition wall does not require the installation of rails on the floor thanks to the upper bracket structure and aluminum suspension on rails, which allows for flexible space division while also ensuring the integrity and aesthetics of the floor.
The panel frame is processed and made of aluminum alloy material to ensure the service life of the partition.
The manual operation is easy and quiet to operation with low noise. It also has a stylish appearance.
Standard Features
l Manually Operated, Individual panel
l Sound insulation 28-54db
l Thickness 100mm (Type 100)
l Maximum width of 1228mm.
l 6063-T6 aluminum alloy frame and rail
l Visible protective frame （silver or black）.
l MDF or national fire-retardant plywood as substrate board.
l Multiple layers of rubber seals on the side of the panel.
l Telescopic closure panel as final panel
l 23mm to 40mm travel distance， Manually-operated, simultaneously-activated top and bottom seal
l maximum height to 15 m
Optional Features
l Single-point suspension, Two-point suspension.
l Thickness 85mm （Type85）, Thickness 65mm （Type65） and Thickness 125mm（Type100）.
l Glass magnesium board, gypsum board, high density board, fireproof density board, aluminum veneer board as substrate board.

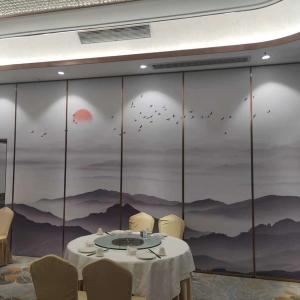

l Finish: Melamine, HPL, inkjet landscape painting，etc.
l Untreated surface
l 12mm acoustic fabric/leather wallcovering, 12mm melamine board + edge bonding.
l Powder-coated frame and/or track.
l Single and double door-leaf passdoor (with handle and key), solid or glass passdoor
l non-acoustic or acoustic Pass door with concealed automatic closer
l Hinged closure panel (with door handle and key).
l Parking patterns: F-shape, H-shape, L-shape, Y-shape, straight line, etc.
